    5ply Sheet To Sheet Laminating Machine for Corrugated Paper with Automatic Servo Control and Precision Servo Control

    Ask Lasest Price
    Brand Name : Innovo Bochen
    Model Number : SFC-1500/1700/1900
    Certification : CE
    Price : 65000-85000USD
    Supply Ability : 30 Sets per month
    Delivery Time : 45 Days
    • Product Details
    • Company Profile

    5ply Sheet To Sheet Laminating Machine for Corrugated Paper with Automatic Servo Control and Precision Servo Control

    5ply Sheet To Sheet Laminating Machine for Corrugated Paper with Automatic Servo Control and Precision Servo Control
    Performance Characteristics
    • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
    • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
    • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
    • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
    • Multifunctional rack accommodates curved corrugated materials
    • 160mm stainless steel glue roller with fine anilox grinding for even coating
    • Dual-use lifting platform with pre-stacker structure
    • Polyethylene-coated rollers for automatic glue release
    • Circulating glue system reduces waste and stabilizes adhesion
    • One-touch machine adjustment via paper size input
    • Integrated video monitoring system
    Technical Specifications
    ModelSFC1500SFC1700SFC1900SFC2200
    Max size1500×1500mm1700×1700mm1900×1900mm2200×2100mm
    Min size360×380mm380×400mm450×450mm500×500mm
    Top Paper120-800g
    Bottom paper400gsm-10mm Corrugated board and cardboard
    Max speed160m/min
    Power22kw25kw27KW30KW
    Stick accuracy±1-2.5mm
    Structural Features
    • Advanced transmission control system with automatic paper size adjustment
    • Computerized high-speed fitting (up to 12,000 pieces/hour)
    • Chuanliu-type air supply head with multiple nozzle sets
    • Feida Block system for low stack cardboard handling
    • Multiple electric eyes for precise paper alignment
    • Full-function electronic control with HMI and PLC monitoring
    • Automatic glue replenishment with recycling system
    Key Components
    1. Bottom Paper Feeding

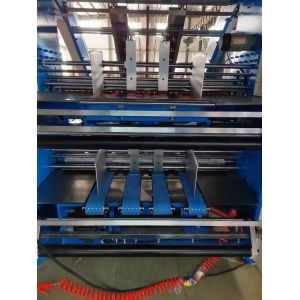

    Bottom paper feeding system with double lead edge feeding

    Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

    2. Top Sheet Feeding Mechanism

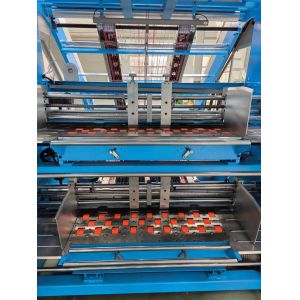

    Top sheet feeding mechanism with adjustable components Close-up of top sheet feeding components

    Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

    3. Electrical System
    Electrical control panel with HMI interface

    CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

    4. Pre-Stack Part
    Pre-stack system with preset function

    Pre-pile system with touch screen configuration for efficient setup and orientation.

    5. Transmission System
    Main transmission components Transmission adjustment mechanism

    Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

    6. Positioning System & Glue Roller

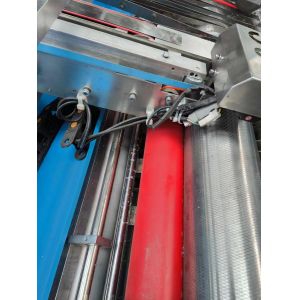

    Precision positioning system with photoelectric sensors

    Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

    7. Touch Screen Operation
    Touch screen control interface

    Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

    Optional Features
    • Leading Edge Feeding System (for large/thick sheets)
    • Shaftless Servo Feeder (for long top sheets)
    • Big Suction System (for multi-layer products)
    • Automatic Lubrication System (extends bearing life)
    • Video Monitoring System (remote operation monitoring)

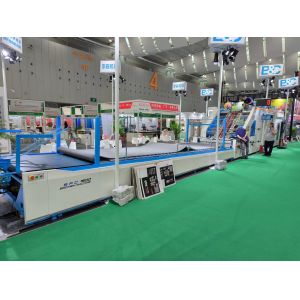

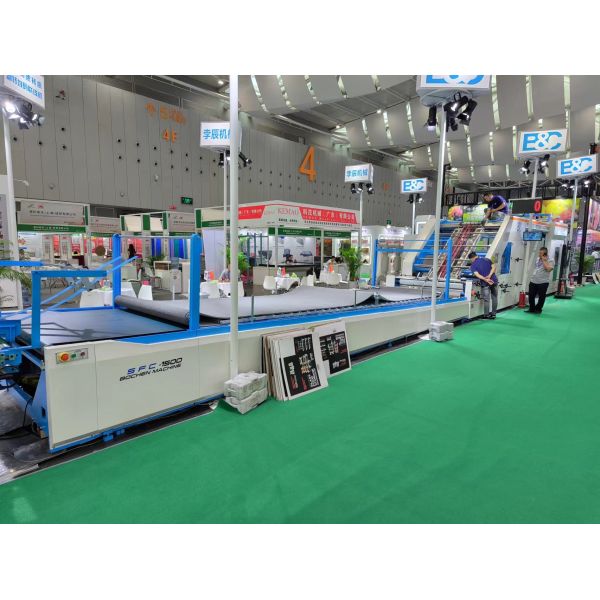

    Complete 5ply sheet laminating machine overview
